API SPEC 5CT套管

文章來源：天津大無縫鋼管廠| 時間：2017/5/25 10:22:02

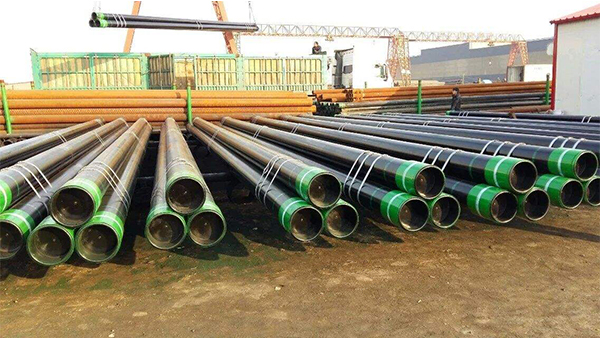

　　公司為用戶提供全部API SPEC 5CT標準鋼級的套管，包括：H40、K55、M65、N80、L80、C90、T95、C95、P110、Q125等鋼級。公司幾乎全部的石油套管均由自行生產的優質連鑄坯制成，其特點是：純凈度高、均勻性好、表面無缺陷。經過先進的軋管和管加工生產線，TPCO套管內外表面質量好，性能穩定，深受客戶歡迎。

API系列：套管
規格		鋼級及扣型								執行標準
外徑mm(in）	壁厚mm	H40	J55、K55	M65	L80、C90	N801、N80Q	C90、T95	P110	Q125	執行標準
114.3(4 1/2)	5.21	S	S	S						API SPEC 5CT/ISO11960
	5.69		S/B	S/B
	6.35		S/L/B	L/B	L/B	L/B	L/B	L/B
	7.37			L/B	L/B	L/B	L/B	L/B
	8.56							L/B	L/B
127(5)	5.59		S	S
	6.43		S/L/B	S/L/B
	7.52		S/L/B/E	L/B	S/L/B/E	S/L/B/E	S/L/B/E	S/L/B/E
	9.19			L/B	S/L/B/E	S/L/B/E	S/L/B/E	S/L/B/E	L/B/E
	11.1			L/B	L/B	L/B	L/B	L/B	L/B
	12.14				L/B	L/B	L/B	L/B	L/B
	12.7				L/B	L/B	L/B	L/B	L/B
139.7(5 1/2)	6.2	S	S	S
	6.98		S/L/B/E	S/L/B
	7.72		S/L/B/E	L/B	S/L/B/E	S/L/B/E	S/L/B/E	S/L/B/E
	9.17			L/B	S/L/B/E	S/L/B/E	S/L/B/E	S/L/B/E
	10.54			L/B	S/L/B/E	S/L/B/E	S/L/B/E	S/L/B/E	S/L/B/E
	12.7
	14.27
	15.88
	17.45
	19.05
	20.62
	22.22
168.28(6 5/8)	7.32	S	S/L/B	S/L/B
	8.94		S/L/B	L/B	S/L/B/E	S/L/B/E	L/B/E	S/L/B/E
	10.59			L/B	S/L/B/E	S/L/B/E	L/B/E	S/L/B/E
	12.06				S/L/B/E	S/L/B/E	L/B/E	S/L/B/E	L/B
177.8(7)	5.87	S
	6.91	S	S	S			L/B/E
	8.05		S/L/B	L/B	S/L/B/E	S/L/B/E	L/B/E
	9.19		S/L/B	L/B	S/L/B/E	S/L/B/E	L/B/E	S/L/B/E
	10.36			L/B	S/L/B/E	S/L/B/E	L/B/E	S/L/B/E
	11.51			L/B	S/L/B/E	S/L/B/E	L/B/E	S/L/B/E
	12.65				S/L/B/E	S/L/B/E	L/B/E	S/L/B/E	S/L/B/E
	13.72				S/L/B/E	S/L/B/E	L/B/E	S/L/B/E	S/L/B/E
	15.88
	17.45
	19.05
	20.62
	22.22
193.68(7 5/8)	7.62	S
	8.33		S/L/B	S/L/B	L/B	L/B	L/B/E
	9.52			L/B	L/B	L/B	L/B/E	L/B
	10.92			L/B	L/B	L/B	L/B/E	L/B
	12.7				L/B	L/B	L/B/E	L/B	L/B
	14.27				L/B	L/B	L/B	L/B	L/B
	15.11				L/B	L/B	L/B	L/B	L/B
	15.88				L/B	L/B	L/B	L/B	L/B
	17.45
	19.05
219.08(8 5/8)	6.71		S	S	S
	7.72	S	S/L/B	S
	8.94	S	S/L/B	S/L/B
	10.16			S/L/B	L/B	L/B	L/B/E	L/B
	11.43			L/B	L/B	L/B	L/B/E	L/B
	12.7				L/B	L/B	L/B/E	L/B
	14.15				L/B	L/B	L/B/E	L/B	L/B
244.48(9 5/8)	7.92	S
	8.94	S	S/L/B	S/L/B
	10.03		S/L/B	S/L/B	L/B	L/B	L/B/E	L/B
	11.05			L/B	L/B	L/B	L/B/E	L/B
	11.99			L/B	L/B	L/B	L/B/E	L/B	L/B
	13.84				L/B	L/B	L/B/E	L/B	L/B
	15.11				L/B	L/B	L/B	L/B
	15.47
	17.07
	18.64
	20.24
273.05(10 3/4)	7.09	S
	8.89	S/B	S/B	S/B
	10.16	S/B	S/B	S/B
	11.43	S/B	S/B	S/B	S/B	S/B	S/B/E	S/B
	12.57				S/B	S/B	S/B/E	S/B
	13.84						S/B/E	S/B	S/B
	15.11						S/B	S/B	S/B
	17.07
	18.64
	20.24
298.45(11 3/4)	8.46	S
	9.53		S/B	S/B
	11.05		S/B	S/B
	12.42		S/B	S/B	S/B	S/B	S/B	S/B	S/B
	13.56
	14.78
339.72(13 3/8)	8.38	S
	9.65		S/B	S/B
	10.92		S/B	S/B
	12.19		S/B	S/B	S/B	S/B	S/B	S/B
	13.06				S/B	S/B	S/B	S/B	S/B
406.40（16）	9.53	S
	11.13		S/B	S/B
	12.57		S/B	S/B
	16.66
508(20)	11.13	S/L	S/L/B	S/L/B
	12.7		S/L/B	S/L/B
	16.13		S/L/B

注：S-短圓螺紋；L-長圓螺紋；B-偏梯螺紋；E-直連型。
